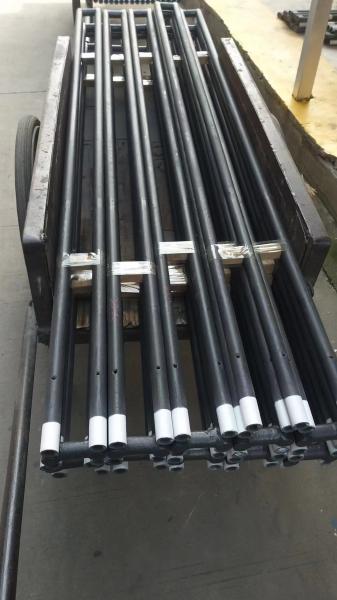

U-shaped silicon carbide rod
The U-shaped silicon heating element is made by taking two carefully matched SiC rods and welding a thick silicon carbide bridge. The U-shaped component connects the two ends from one side of the furnace. The tail end of the cold end is made of aluminum metal, providing a low resistance contact surface for the aluminum connecting strip and fixture.
Features:
1. High strength and excellent shock resistance;
2. Heat source is free of noise and air pollution;
3. Anti-oxidization;
4. Anti-corrosion,
5. Long service life,
6. Little deformation,
7. Easy installation and maintenance.
8. Excellent specific rate of heat zone resistance and cold end resistance,
9. Avoiding over-temperature of cold ends to damage the furnace body.
10. Saving energy
| Outer Diameter (OD, mm) | Hot zone (HZ, mm) | Cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
|
|
