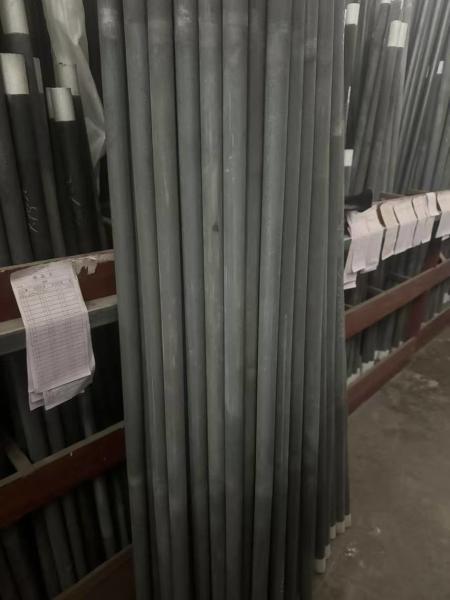

    ED Type Silicon Carbide Rod

    ED Type Silicon Carbide Rod

    ED Type Silicon Carbide Rod​
    Silicon carbide rods (ED type) are substitute products for thick-end silicon carbide rods.
    Advantages and Characteristics:

    Low End Resistance: It enables the electric current to be distributed more evenly on the rod body, reducing local overheating and prolonging the service life.
    Long Service Life: Thanks to its own properties, it can work stably for a long period of time.
    Energy-saving: Under the same power input, it can convert electrical energy into thermal energy more efficiently, thus achieving energy saving.


    Application Industries and Equipment:

    Rare Earth Fluorescent Powder Industry: Used as heating elements for pusher plate furnaces, mesh belt furnaces, etc.
    Electronics Industry: Applied to relevant heating equipment in processes such as electronic component manufacturing.
    Magnetic Materials Industry: Adapted to the temperature requirements of magnetic material production and used as heating elements.
    Powder Metallurgy Industry: Undertakes the heating task in the production process.
    Precision Casting Industry: Provides the necessary heating conditions for the casting process.


    Outer Diameter

    (OD, mm)

    Hot zone

    (HZ, mm)

    Cold zone

    (CZ, mm)

    Overall length

    (OL, mm)

    Range of resistance

    (ohms)

    8100-30060-200240-7002.1-8.6
    14100-500150-350400-12000.7-5.6
    16200-600200-350600-13000.7-4.4
    18200-800200-400600-16000.7-5.8
    20200-800250-600700-20000.6-6.0
    25200-1200250-700700-26000.4-5.0
    30300-2000250-800800-36000.4-4.0
    35400-2000250-800900-36000.5-3.6
    40500-2700250-8001000-43000.5-3.4
    45500-3000250-7501000-45000.3-3.0
    50600-2500300-7501200-40000.3-2.5
    54600-2500300-7501200-40000.3-3.0
