W Type SiC Heating Elements

Advantages of Silicon Carbide Heater

1. The temperature can reach up to 1500 ° C (surface temperature).

2. There are various shapes available, such as rod-shaped, U-shaped, W-shaped, single helix, and double helix, to meet your needs.

3. The size range is relatively large.

4. Generate high heat output per unit surface area.

Application of Silicon Carbide Heater

It can be widely used in sintering and heating elements for ceramics, magnets, glass, metallurgy, refractory materials, etc.

There are two different types of three-phase components: SGC (dumbbell type) and SGD (standard type).

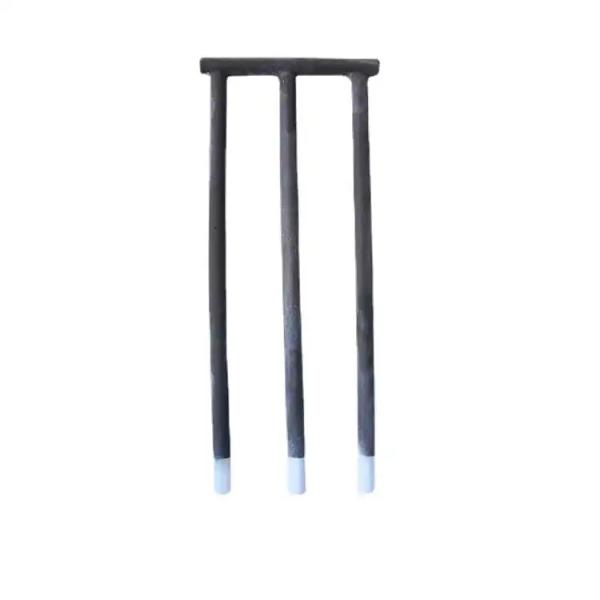

These elements are self bonded silicon carbide formed by recrystallization of silicon carbide at high temperatures. It consists of three high-purity silicon carbide rods, with one end connected by a silicon carbide crossbar. SGC components are designed for vertical installation in standard float glass baths, while SGD components are designed for horizontal installation. They can be directly connected to a three-phase power supply and are a single-sided terminal type that allows terminals to be extracted from the furnace top.

Zhengzhou Songyu High Temperature Technology Co., Ltd. is a comprehensive company specializing in the research and development, production, sales, and technical services of silicon carbide and molybdenum disilicide resistance heating elements. Adhere to customer-oriented approach and strive to continuously improve product quality.
